Building View

Adding the building structure

Back to Top

After you have created a new project, start building up the room structure of your project using the KNX Tool Drawing board (similar to ETS).

Back to Top

Create customized systems for different KNX projects by designing the overall layout of the building structure first.

Back to Top

Add different rooms, levels , areas and outdoor spaces where KNX integration is required — then you can begin adding KNX Devices to setup your customized KNX system (as outlined in the following Add Devices section).

Back to Top

1. Open the building view

Back to Top

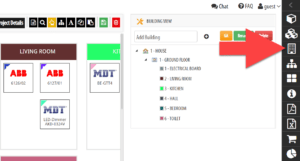

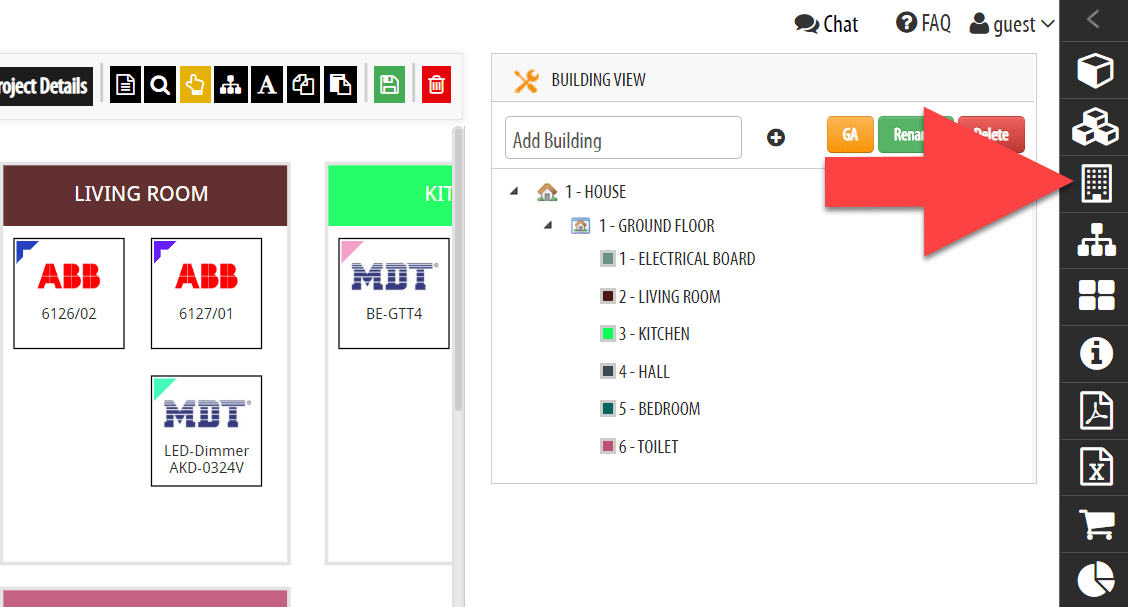

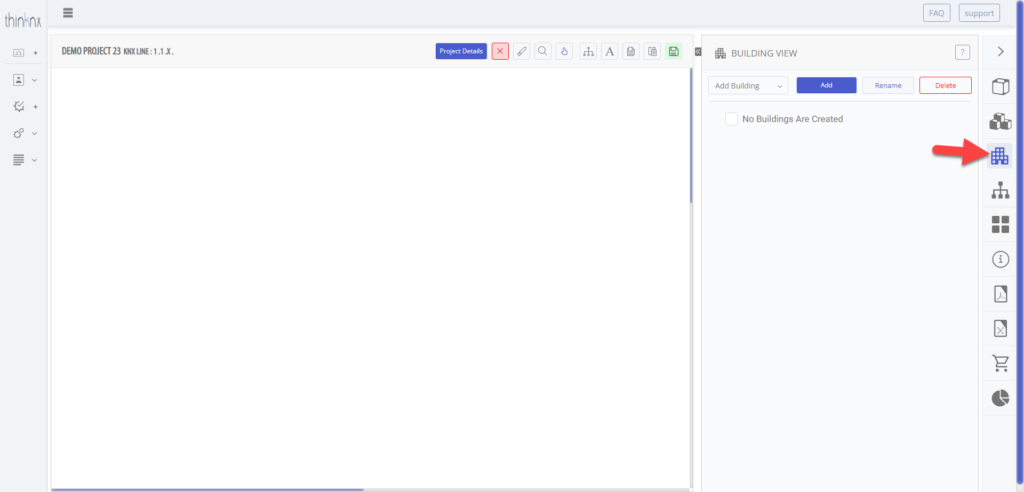

Open a project and click the building view tab in the righ-side menu.

Back to Top

2. Add a building, floors and rooms

Back to Top

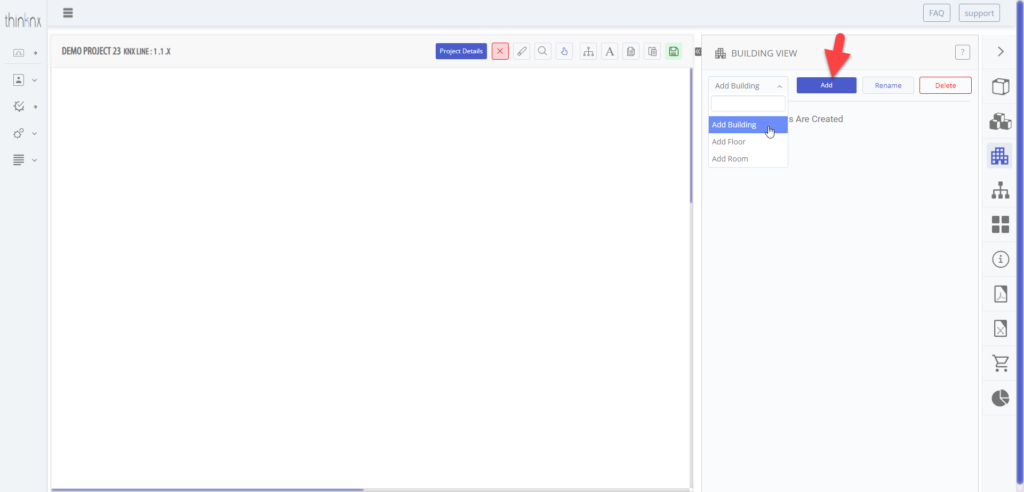

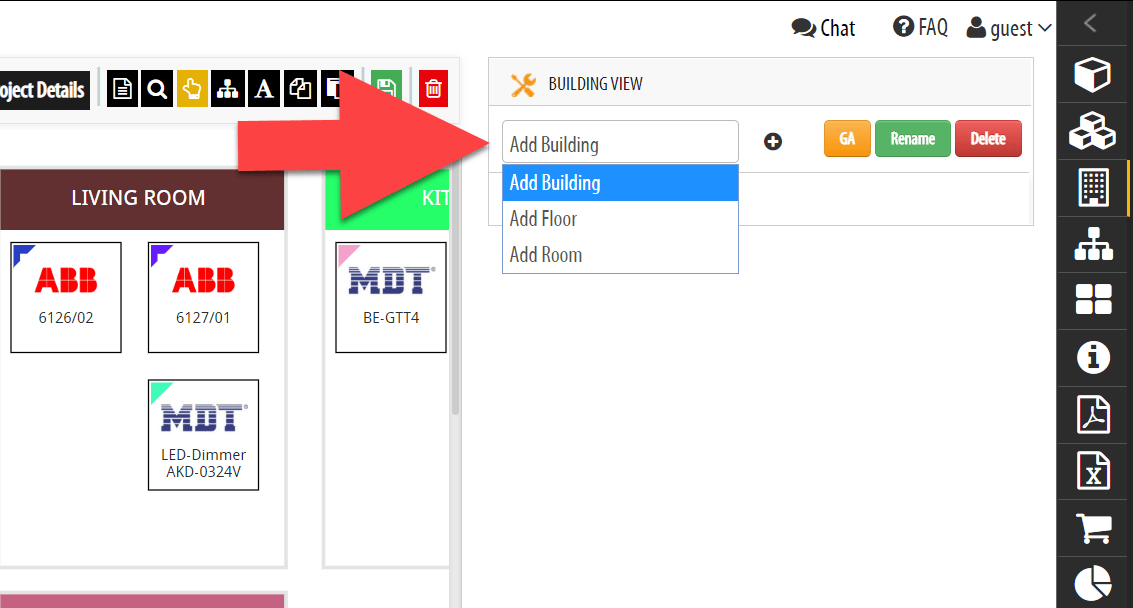

First select “add building” from the dropdown menu. Then, click “add” to add the building to the building structure.

Back to Top

Select the building from the list before adding floors or rooms to preserve the building structure.

Back to Top

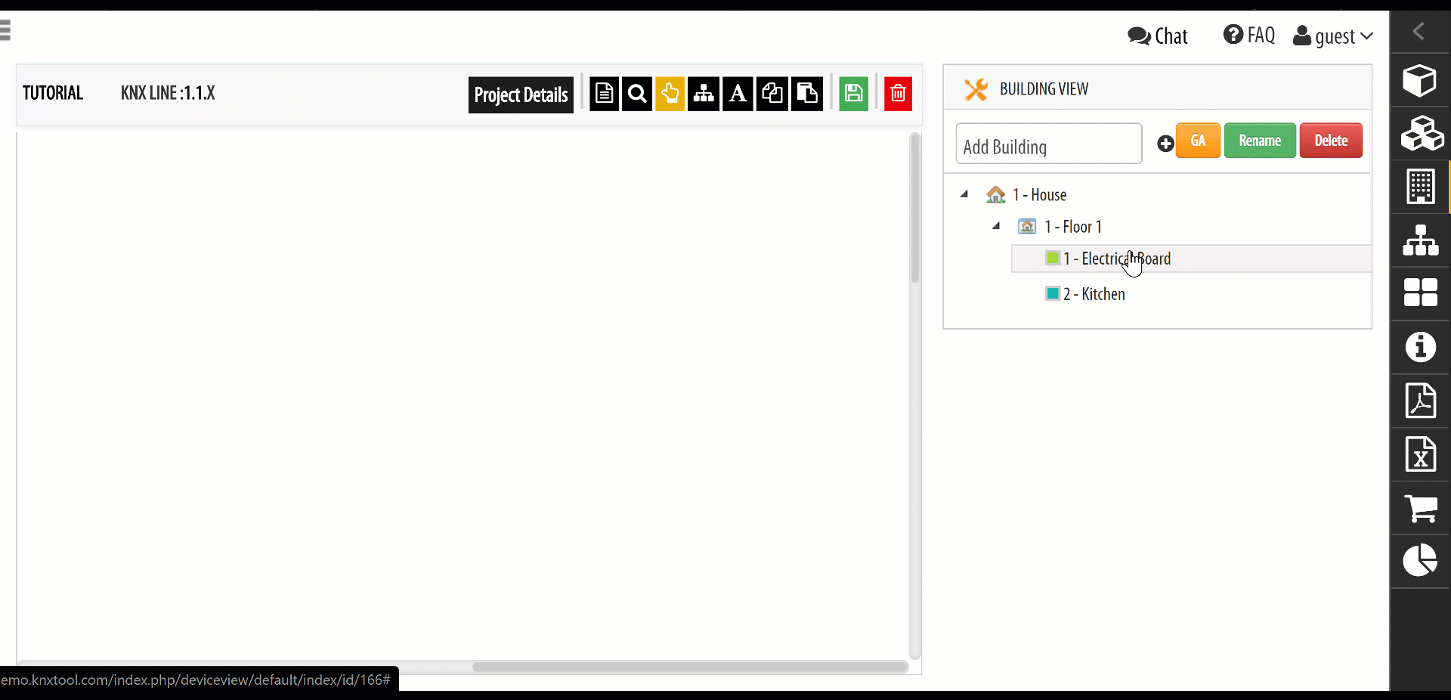

You can rename the objects in the building structure by selecting them and clicking the rename button.

Back to Top

3. Drag&drop rooms to the drawing board

Back to Top

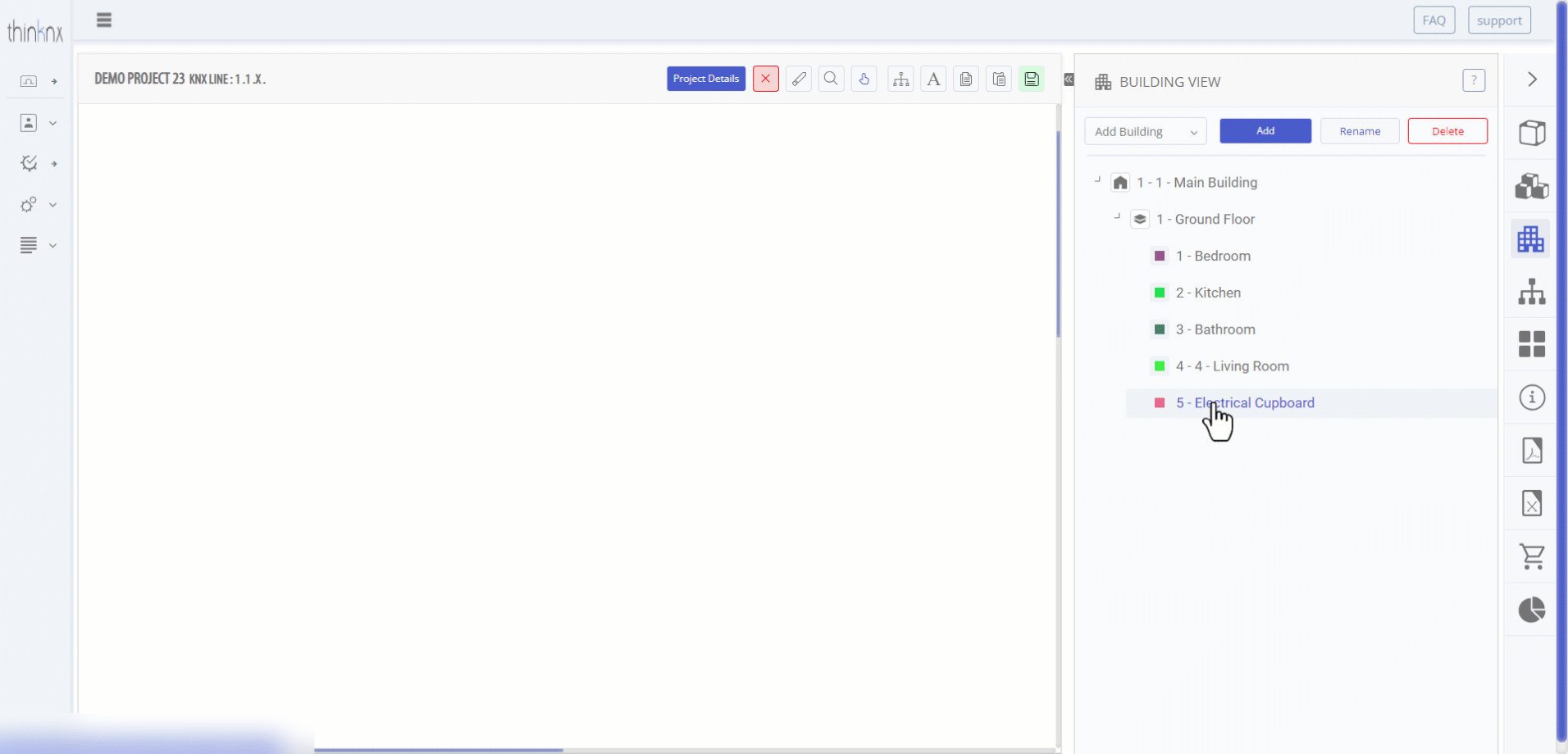

After you have finished designing the layout for the building structure, drag the rooms from the tree/list view over to the Drawing Board so you can begin adding devices to each room.

Back to Top

4. Remember to save your progress

Back to Top

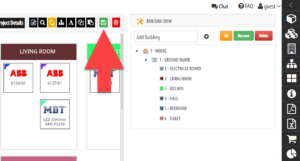

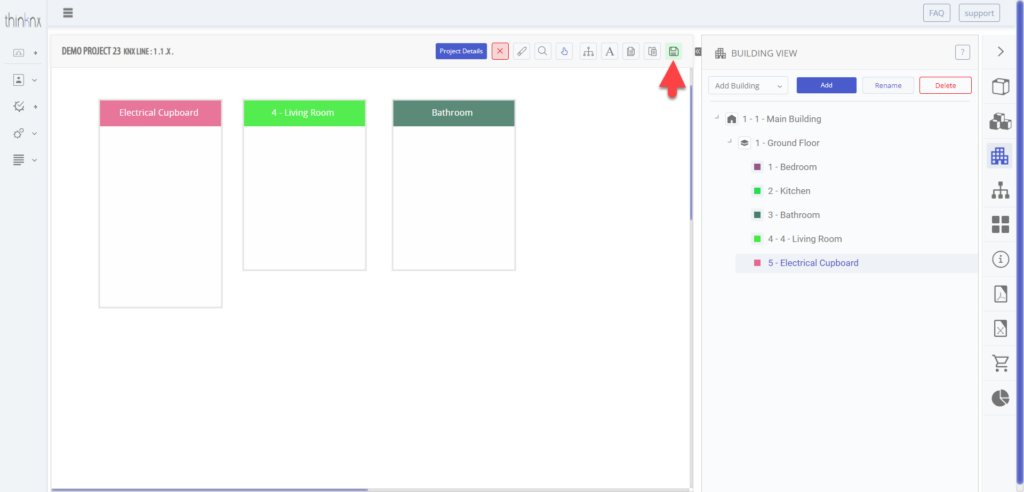

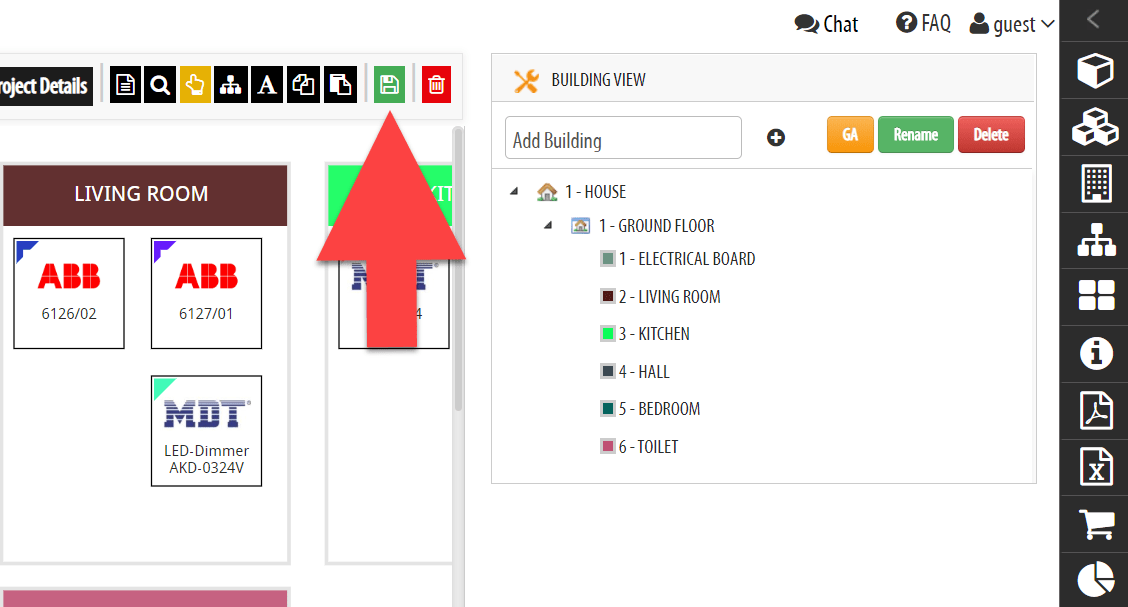

Click the Green Save icon to save your project.

Back to Top

[NOTE: The building structure (room order) will also determine in which order the rooms will appear in printed reports.]
